BI Publisher API Example – Creating EXCEL Report from XML/XSL-FO/RTF in Oracle Apps?
Oracle has shared us a set of BI Publisher Java Classes for performing various BI Publisher function like converting RTF to XSL-FO, generating PDF output from XSL-FO and XML etc.
In this post, we will generate an EXCEL report output from XML file and RTF Template using the standard Oracle BI Publisher API’s (Java based).
STEP1: Prepare and Convert RTF template to XSL-FO file
Oracle has provided a Java Class to generate PDF output based on XSL-FO file and XML input. Hence, first step is to generate the XSL-FO file based on RTF template. Details are available in another article,
Now, we should be having a XSL-FO file now.
STEP2: Prepare the Java wrapper Class for calling Standard class FOProcessor
import java.io.InputStream;import java.io.OutputStream;import oracle.apps.xdo.template.FOProcessor;import oracle.apps.xdo.template.fo.util.FOUtility;import java.io.*;import oracle.apps.xdo.common.pdf.util.PDFDocMerger;import oracle.apps.xdo.batch.DocumentProcessor;public class convertxmltoexcel {public static void main(String[] args){try{FOProcessor processor = new FOProcessor();processor.setData(args[0]); //input XMLprocessor.setTemplate(args[1]); //input XSL templateprocessor.setOutput(args[2]); // output Excel File// Set output format (for EXCEL generation)processor.setOutputFormat(FOProcessor.FORMAT_EXCEL);// Start processingprocessor.generate();}catch (Exception e){e.printStackTrace();System.exit(1);}System.exit(0);}}
STEP3: Compile the Java wrapper
javac -classpath $CLASSPATH convertxmltoexcel.java
Step 4: Copy the Wrapper Class to JAVA_TOP
cp convertxmltoexcel.class $JAVA_TOP
STEP5: Verify the Sample RTF template, XSL-FO file and XML File
Input XML:
![clip_image001[4]](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhzifpJDNAPyG6Y_vyvCYPrJiWT-I9h_XAMzLxzbb2KqmPFLopvb1TrvGH7HxqbSO24EF-Y76QoL5erjYsj2rBtOKDMq0f94owDINICZ8QvREtvEJdwKeRtIG92kNWkF6yG3RIlEbvi8MUV/s1600-h/clip_image001%25255B4%25255D%25255B2%25255D.png "clip_image001[4]")

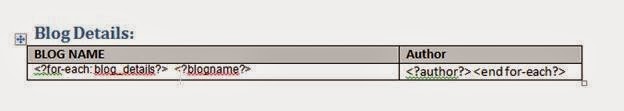

Actual RTF:
![clip_image003[4]](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgpPz_r0EgjKNc4NQAl_9l4WA2w7ENPOfhHGBnChcucrYGrHBv_xUJ62W1WSszNDfi0rYs03GsivVT9KI9KG6rGTvILs1uXgNcYm82sOzr-Nz0voaE7dqNZ8gGBGE0DlTWi7LjwO51nMizD/s1600-h/clip_image003%25255B4%25255D%25255B2%25255D.jpg "clip_image003[4]")
Generated XSL-FO based on Step 1:
![clip_image005[4]](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjmVkkRUsskdH2qeYZq0ceKajarkgXBGhgCS5rEGWGH0GwHacV7nlqJpbByou7N2Hnp4OGkQoZD5WeL73J63J0hWSaLJxFzt-ZZysp9_ipI5meqIQ55kHmMGjnwIZZ_esF9YEiHzzmK2ayc/s1600-h/clip_image005%25255B4%25255D%25255B2%25255D.jpg "clip_image005[4]")
Step6: Place the XSL-FO and Input XML file in Desired Directory and Call the Wrapper Java Class
java -classpath $CLASSPATH convertxmltoexcel ./INPUTDATAXML.xml ./RTFTEMPLATEEX.xsl ./RTFTEMPLATEEX.xls
![clip_image007[4]](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg-3eLIuLRh9Wo_gsz__OVotbR-wjH_zS2xDqqRIhTSvimUx6f1xCLXlNAjMUhCXmuR2ekDCnI6cGu57Y9QmdNqR4XLENSdD67hnEYV2upUIz84yA9nbSDetFbVKvnwyOyhyphenhyphenjnMZAoBldXX/s1600-h/clip_image007%25255B4%25255D%25255B2%25255D.jpg "clip_image007[4]")
Output Excel Report:
![clip_image008[4]](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhGxSyIidR_hHccvdMt31guwdXTQErzxjMfK5QmUQFHjeJjEe2SugiBts-Vu68A8KNFGzc6dpXV5oO89f6OQQ6ZBpZrz8EvGgFWAYCTBvDldSIzt5Len5LSE0lYiLdN7uyFRLCJ9oMdNStV/s1600-h/clip_image008%25255B4%25255D%25255B2%25255D.png "clip_image008[4]")
Now the Command given in the step6 can be called from HOST based concurrent program in Oracle Apps.
Happy Shairng !! Enjoy Learning!!
Happy Shairng !! Enjoy Learning!!
